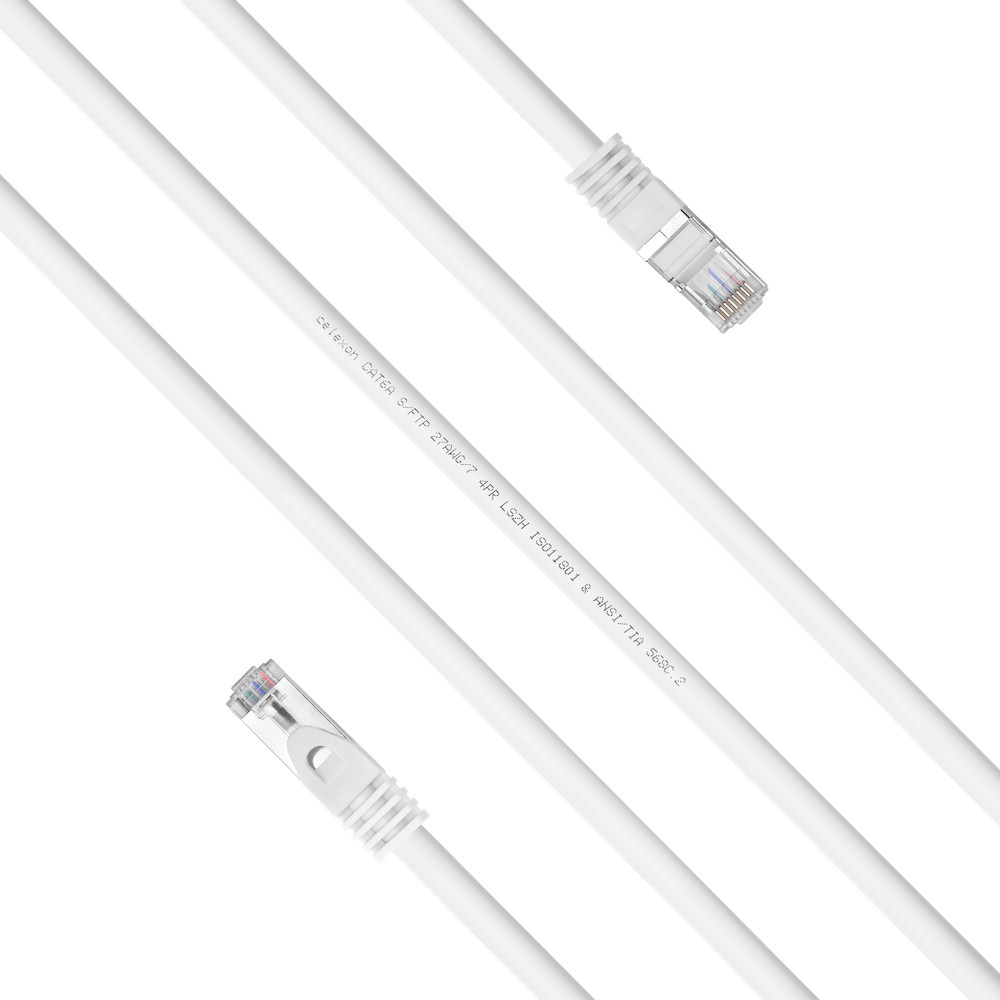

celexon CAT6A patch cable - S/FTP 0.25m, White

Product information

The celexon CAT6A patch cable - S/FTP transmits network signals at a speed of up to 10 gigabits per second at an operating frequency of up to 500 MHz. This means that it can not only be used in the classic TCP/IP area, but also for IP streaming and HDBaseT infrastructures.

The common standards for home network infrastructures are CAT 5 and 6. In the professional sector, standards 7 and 8 are also used.
For the CAT 6A specification, the contact geometry in the RJ45 plugs has been optimised. Here, the maximum transmission rate and speed is achieved. The transmission speeds of standards 7 and 8 cannot be achieved with an RJ45 plug.

CAT 5: CAT 5 patch cables are still very common in private applications. In professional areas, they are increasingly being replaced by the higher standards. With a frequency of up to 100 MHz, data rates of 1 Gbps are transmitted. Especially in domestic areas, these transmission parameters are usually completely sufficient for connecting routers, computers and other devices.
CAT 6: CAT 6(A) patch cables transmit data rates of up to 10 Gbps at a frequency of up to 500 MHz. This standard is now used in all areas and is currently the most common standard in this area. For new installations, it is recommended to use this standard directly, as the cables are better protected against external influences than CAT 5 cables.
CAT 7: Patch cables with the CAT 7 standard can only transmit data rates of up to 10 Gbps at a frequency of up to 1,000 MHz with a GG45 connector. The classic RJ45 connector cannot fully utilise this bandwidth. Since the periphery is not very widespread and is comparatively very expensive, the area of application here is very limited and is found almost exclusively in professional installation areas.
CAT 8: Cables with the CAT 8 standard are used exclusively in professional areas such as data centres. Transmission speeds of up to 100 Gbps at 2,000 MHz are achieved - but only over distances shorter than 30 metres. For many "normal" areas, the cost-benefit ratio is not balanced here.

The S/FTP (Screened Foiled Twisted Pair) specification describes the shielding structure of these patch cables.
The wire pairs are each shielded with a foil. In addition, all 4 wire pairs are shielded together with a wire braid - this corresponds to the standardisation according to ISO / IEC 11801 Ed 2.2. Thus, the cables are optimally protected against interfering external electromagnetic fields.

S/FTP (Screened Foiled Twisted Pair)
S= Screened - braided shield
F = Foiled - foil shield
TP = Twisted Pair - twisted pair wires

The LSZH cable sheathing (Low Smoke Zero Halogen) of the celexon CAT 6A patch cable consists of thermoplastic or thermoset moulding compounds and is free of halogens. Unlike PVC cables, LSZH cables produce hardly any toxic smoke gases if a fire occurs, making them particularly suitable for indoor use. In public areas where network infrastructures have to be installed close to places with a high volume of people or openly, the use of LSZH cables is prescribed by the EU. The toxic fumes from PVC when it burns pose a risk to human health.

The CAT 6A patch cables ensure high corrosion resistance and reliable transmission performance thanks to their gold-plated contacts.

KEY INFORMATION

RJ45 plug to RJ45 plug
Standard: CAT.6A, Assignment: TIA/EIA 568B
Transmission mode: Ethernet, HDBaseT, AVoIP etc.
Transmission speed: 10 Gbps
Bandwidth: 500 MHz
Connector: gold-plated precision plug contacts, transparent plastic, nickel-plated housing, flexible bend protection
Cable: high-purity copper strands (4x twisted pair - 7/0.135 BC), S/FTP shielding, AWG27, halogen-free LSZH sheath with 5.8 mm diameter
Cable colour: white
Cable type: Round
Cable length: 0.25m
REACH, RoHs compliant

IN THE BOX

1x celexon CAT 6A patch cable - S/FTP 0.25m, White

Technical data

Name	celexon CAT6A patch cable - S/FTP 0.25m, White
Article number	1000020709
GTIN/EAN	4260094744679
Manufacturer SKU	1000020709
Model name	1000020709
Brand	celexon
Product Type	Cable
Product Series	celexon CAT 6A - S/FTP
Inputs	1x Ethernet Inputs HDMI: Digital connection for the transmission of picture & sound. Necessary for high-resolution picture quality (HDTV). Since HDMI 1.4 (High Speed) suitable for transmission of 3D content in Full HD. For high-resolution picture quality in UHD, 4K or HDR, the connection via HDMI 2.0a and higher is suitable. HDMI 2.1 or higher should be used from 120Hz refresh rate in 4K. VGA: The VGA connector is a 15-pin connector for analogue image transmission. It is also called DSub15 and is often found on notebooks and PCs. Compared to the other analogue connections, it offers good picture quality. It can be screwed to the input or output device and can be adapted to YUV with a suitable configuration. DisplayPort: The DisplayPort connection is a VESA-standardised connection for the transmission of image and sound data. In addition to HDCP encryption, DPCP is also supported. Due to its compact size, the connection is most commonly used in notebooks. An extra small variant is the MiniDisplayPort, which is used especially with Apple devices. DVI: DVI (Digital Visual Interface) is an interface for the transmission of video data. Only analogue signals can be transmitted via DVi-A, only digital signals via DVI-D and both types of signals via DVI-I. USB: USB (Universal Serial Bus) is used to control and manage the projector (USB-B). With some business devices, office files and images can also be presented directly with a USB stick or a mouse can be connected via the USB input (USB-A). Toslink: The Toslink connection is an optical signal connection that works on an optical fibre basis. It is used for the digital transmission of audio signals. The optical design offers a lower susceptibility to interference from external magnetic and electrical influences. The connection is mostly used in the area of DVD / Blu-ray players and comparable devices in connection with an AV receiver, if these work with dts or Dolby Digital signals. YUV: The YUV connection, also called Y Cb/Pb Cr/Pr or component connection, is an analogue video connection with three channels (light intensity and two colour channels). Qualitatively, it is the best analogue video connection. Component cable: The YUV connector transmits analogue signals over three cables (Y=black and white UV=colours). YUV is used to transmit HDTV and is compatible with Cinch, for example. S-Video: The S-Video connection is also called S-VHS or Hosiden connection. Compared to the Cinch video connection, it works with two channels (brightness/colour). In terms of quality, it is somewhat better than the Cinch video connection, but there are also limitations. These can be explained by the susceptibility of the signal, which is reflected in picture distortions, for example. Cinch: The cinch video connection is also called composite connection. To make it easier to recognise, it is usually sheathed in yellow. Since the transmission is only via one channel, the picture quality is on a low level. D-Sub15: The VGA connector is a 15-pin connector for image transmission on an analogue basis. It is also called DSub15 and is often found on notebooks and PCs. Compared to the other analogue connectors, it offers good picture quality. It can be screwed to the input or output device and can be adapted to YUV with a suitable configuration. RS232: The RS232 interface can be used to control or manage the projector. Mini Jack: With a single-pin Mini Jack, mono audio signals can be transmitted, with a two-pin stereo audio signals and with a three-pin stereo audio signals and image data can be transmitted. Scart: Scart is a connector that can be used to transmit analogue audio and video signals. It is compatible with other analogue connections such as RCA or S-Video. ARC: The audio return channel, also called ARC or audio return channel, was introduced with HDMI version 1.4 to reduce the amount of cabling between HDMI components. The audio return channel runs via the existing HDMI cable. Therefore, an additional cable for the sound no longer needs to be connected. However, both devices must support ARC. All audio file formats that are also transmitted via the SPDIF interface can be transmitted via the audio return channel. These include Dolby Digital, Digital Theatre Sound and PCM audio. As an example, a connection between a TV (including receiver) and an AV receiver could be made via an HDMI cable. The sound from the TV is fed back via the HDMI cable. Previously, an additional digital cable (coaxial or Tos-Link) was required for the audio signals.
Outputs	1x Ethernet Outputs HDMI: Digital connection for the transmission of picture & sound. Necessary for high-resolution picture quality (HDTV). Since HDMI 1.4 (High Speed) suitable for transmission of 3D content in Full HD. For high-resolution picture quality in UHD, 4K or HDR, the connection via HDMI 2.0a and higher is suitable. HDMI 2.1 or higher should be used from 120Hz refresh rate in 4K. VGA: The VGA connector is a 15-pin connector for analogue image transmission. It is also called DSub15 and is often found on notebooks and PCs. Compared to the other analogue connections, it offers good picture quality. It can be screwed to the input or output device and can be adapted to YUV with a suitable configuration. DisplayPort: The DisplayPort connection is a VESA-standardised connection for the transmission of image and sound data. In addition to HDCP encryption, DPCP is also supported. Due to its compact size, the connection is most commonly used in notebooks. An extra small variant is the MiniDisplayPort, which is used especially with Apple devices. DVI: DVI (Digital Visual Interface) is an interface for the transmission of video data. Only analogue signals can be transmitted via DVi-A, only digital signals via DVI-D and both types of signals via DVI-I. USB: USB (Universal Serial Bus) is used to control and manage the projector (USB-B). With some business devices, office files and images can also be presented directly with a USB stick or a mouse can be connected via the USB input (USB-A). Toslink: The Toslink connection is an optical signal connection that works on an optical fibre basis. It is used for the digital transmission of audio signals. The optical design offers a lower susceptibility to interference from external magnetic and electrical influences. The connection is mostly used in the area of DVD / Blu-ray players and comparable devices in connection with an AV receiver, if these work with dts or Dolby Digital signals. YUV: The YUV connection, also called Y Cb/Pb Cr/Pr or component connection, is an analogue video connection with three channels (light intensity and two colour channels). Qualitatively, it is the best analogue video connection. Component cable: The YUV connector transmits analogue signals over three cables (Y=black and white UV=colours). YUV is used to transmit HDTV and is compatible with Cinch, for example. S-Video: The S-Video connection is also called S-VHS or Hosiden connection. Compared to the Cinch video connection, it works with two channels (brightness/colour). In terms of quality, it is somewhat better than the Cinch video connection, but there are also limitations. These can be explained by the susceptibility of the signal, which is reflected in picture distortions, for example. Cinch: The cinch video connection is also called composite connection. To make it easier to recognise, it is usually sheathed in yellow. Since the transmission is only via one channel, the picture quality is on a low level. D-Sub15: The VGA connector is a 15-pin connector for image transmission on an analogue basis. It is also called DSub15 and is often found on notebooks and PCs. Compared to the other analogue connectors, it offers good picture quality. It can be screwed to the input or output device and can be adapted to YUV with a suitable configuration. RS232: The RS232 interface can be used to control or manage the projector. Mini Jack: With a single-pin Mini Jack, mono audio signals can be transmitted, with a two-pin stereo audio signals and with a three-pin stereo audio signals and image data can be transmitted. Scart: Scart is a connector that can be used to transmit analogue audio and video signals. It is compatible with other analogue connections such as RCA or S-Video. ARC: The audio return channel, also called ARC or audio return channel, was introduced with HDMI version 1.4 to reduce the amount of cabling between HDMI components. The audio return channel runs via the existing HDMI cable. Therefore, an additional cable for the sound no longer needs to be connected. However, both devices must support ARC. All audio file formats that are also transmitted via the SPDIF interface can be transmitted via the audio return channel. These include Dolby Digital, Digital Theatre Sound and PCM audio. As an example, a connection between a TV (including receiver) and an AV receiver could be made via an HDMI cable. The sound from the TV is fed back via the HDMI cable. Previously, an additional digital cable (coaxial or Tos-Link) was required for the audio signals.
Cable length	0.25 m
Product width	4.1 cm
Product height	1.18 cm
Weight	0.021 kg
Colour	White
Condition	New
Warranty	24 Month
Warranty type	Bringin service Service and support information
