Product information

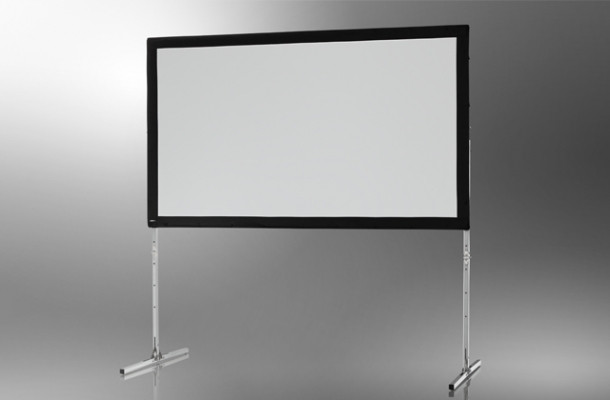

celexon's Folding Frame Projector screen Mobile Expert series is a very high quality, extremely robust screen, designed for multiple mobile applications. They are quick and easy to set up and will be delivered in a rugged flightcase.

Features :
- 406 x 228cm viewing area, format: 16:9
- Max height : 335cm, min height: 275 cm
- Flightcase dimensions (W x H x D): 115.5 x 31 x 55cm
- Total weight (including flightcase): 41 kg
- Front projection fabric with a black border and black back and round fastening poppers
- One-piece aluminum folding frame, two-piece aluminum feet
- Quick and easy assembly without the use of tools
- Extremely stable and resistant
- Light weight due to aluminum construction
- Rugged flightcase with rotating metal clasps and wheels
- Storage bag for the screen fabric

The celexon Folding Frame Mobile Expert screen can be set up in minutes without using tools. The screen is fastened by poppers onto the front of the aluminum frame. The feet can be mounted at different heights and provide a stable stand. A flightcase protects the screen during transport and during stroage.

Ideal for rental, large events, clubs, schools etc.

Technical data

Name	celexon Folding Frame Projector screen 406 x 228cm Mobile Expert, front projection
Article number	1090333
GTIN/EAN	4260094732324
Manufacturer SKU	1090333
Model name	1090333
Projection Distance	Long Throw , Short Throw , Ultra Short Throw
Brand	celexon
Product Type	Projection screen
Product Series	celexon Mobil Expert, Front projection
Screen type	Folding Frame , Mobile
Technology	Front projection
Screen fabric	matt white PVC
Aspect Ratio	16:9 Aspect Ratio Format: The projected image is output in a format (aspect ratio) specified by the projector. The format is also determined by the resolution of the projector (see also the entry "Resolution"). The screen format is usually selected on the basis of the format of the beamer image. The most common formats are 4:3, 16:9 and 16:10.
Viewable Area - Width	406 cm Viewable Area - Width Visible surface: The usable surface of a screen is the coated part of the cloth on which the image is projected. The frame and box width are always a few centimetres wider than the usable surface of the screen.
Viewable Area - Height	228 cm Viewable Area - Height Visible surface: The usable surface of a screen is the coated part of the cloth on which the image is projected. The frame and box width are always a few centimetres wider than the usable surface of the screen. Leader: The leader or offset is the part above the screen. This allows the upper vertical area of the fabric of a roller screen to be limited and freely determined within certain limits. The leading edge prevents the visible area of the screen from being set too high when a screen is positioned in rooms with high ceilings.
Black border - Top	10 cm Black border - Top Masking: The black border of a canvas is called masking. It provides an increase in contrast to the actually visible image and is also responsible for delimiting the edge of the image. The masking can be fixed or variable, for example to switch to a different format.
Black borders - Left/Right	10 cm Black borders - Left/Right Masking: The black border of a canvas is called masking. It provides an increase in contrast to the actually visible image and is also responsible for delimiting the edge of the image. The masking can be fixed or variable, for example to switch to a different format.
Black border - bottom	10 cm Black border - bottom Masking: The black border of a canvas is called masking. It provides an increase in contrast to the actually visible image and is also responsible for delimiting the edge of the image. The masking can be fixed or variable, for example to switch to a different format.
Gain factor	1.2 Gain factor Gain factor: The gain factor (or also called gain) is used to assess the reflection behaviour of screens and describes the light gain achieved in contrast to the brightness of the projector. A gain factor of 1.2 indicates that a screen reflects 1.2 times more in a given direction than a defined white standard surface. The gain factor is always given for the straight viewing angle of 0 degrees. Hot spot: A hot spot is a brightening in the centre of the image on a screen. These disturbing artefacts are created by the direct visibility of the projector lamp and only occur on screens with a very high gain factor (1.8 to 2.0).
Features	Black backing
Product width	426 cm
Product height	335 cm
Product depth	10.3 cm
Weight	41 kg
Colour	Black
Condition	New
Warranty	24 Month
Warranty type	Bringin service Service and support information

Manufacturer's warranty information:
Here you will find more detailed information on the different types of warranty. Please refer to our manufacturer overview for contact details and warranty conditions for the corresponding warranty claim. Statutory warranty rights are not restricted by an additional manufacturer's warranty. Our liability for defects is governed by law. Defect rights can be claimed free of charge.

Downloads

User manual

(PDF 2.6 MB)

celexon Folding Frame Projector screen 406 x 228cm Mobile Expert, front projection
