£429.99*
- Screen type Manual
- Technology Front projection
- Aspect Ratio 4:3
- Mount type Wall, Ceiling
Frequently purchased together
Product information
Celexon Projector Screen Manual Professional Plus 300 x 225 cm
Celexon have expanded their popular Professional Plus series with this new screen model, bringing you good quality at a reasonable price point.
The screen is designed for use in conference and meeting rooms as well as for the ambitious home cinema user. Available in 4 sizes up to 300cm width, the series offers a wide choice for all projections.

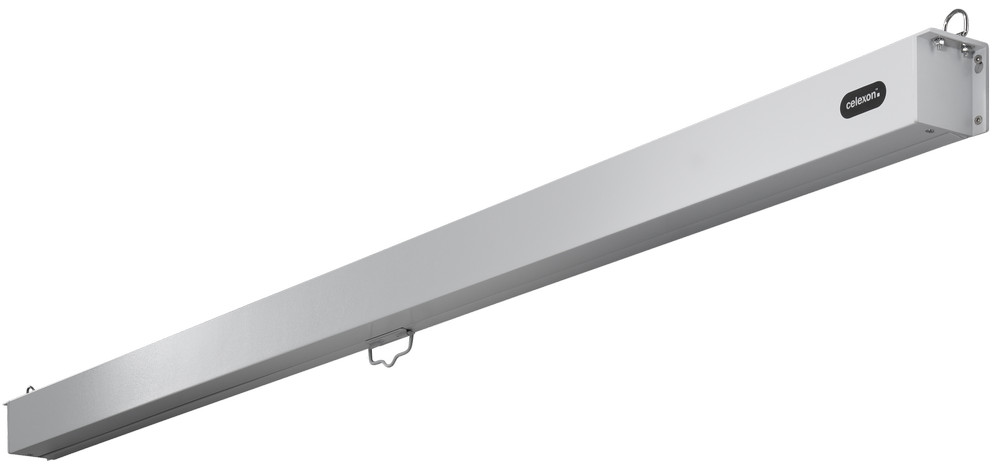

The white screen housing has a simple, clean design with a wedge-shaped weighted bar that gives a smooth flush finish when retracted into the housing. It has a high quality 3-ply fabric and a gear-driven soft-return mechanism for retraction.
Key Features:

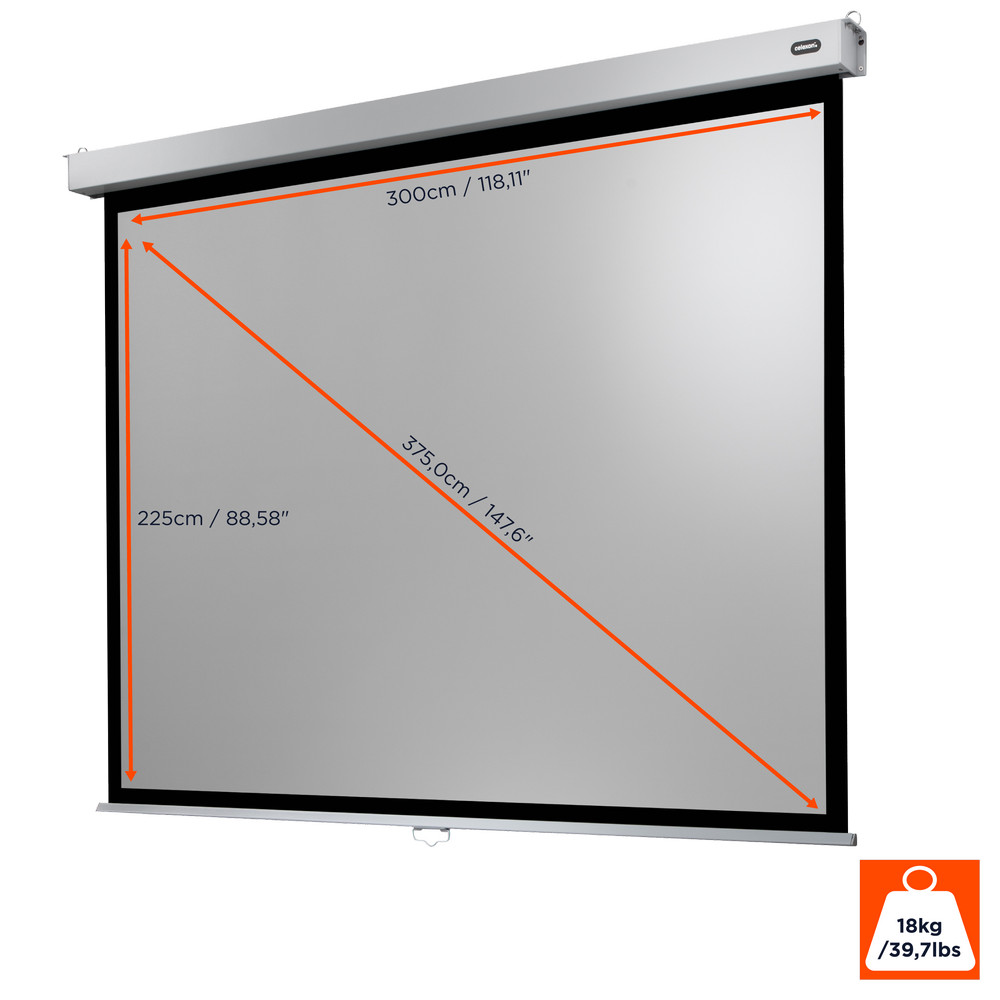

- 300 x 225 cm viewing area
- 6 cm black border left, right and bottom
- 8 cm black drop above

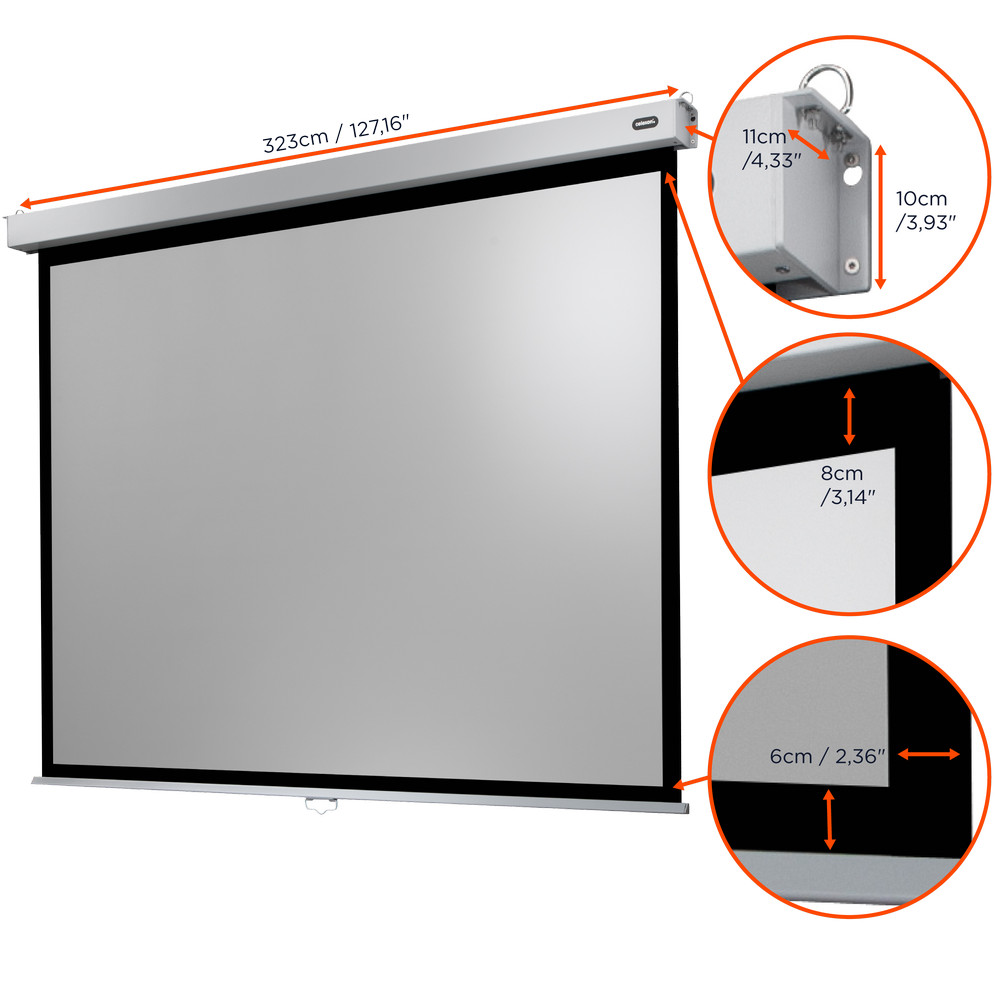

- Dimensions of the housing (W x H x D): 323 x 10 x 11 cm
- Weight: 18 kg

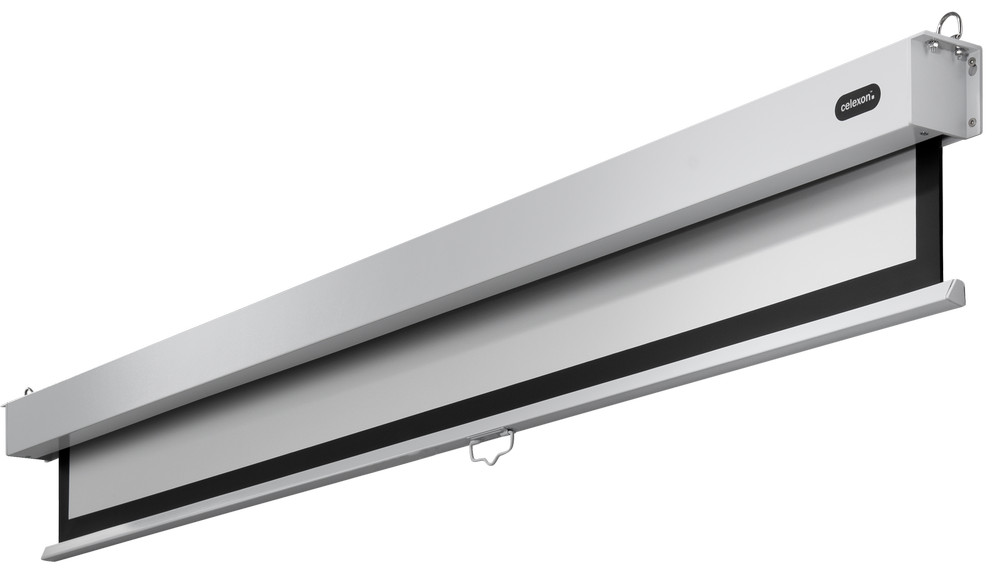

- Weighted bar sits flush in housing when retracted

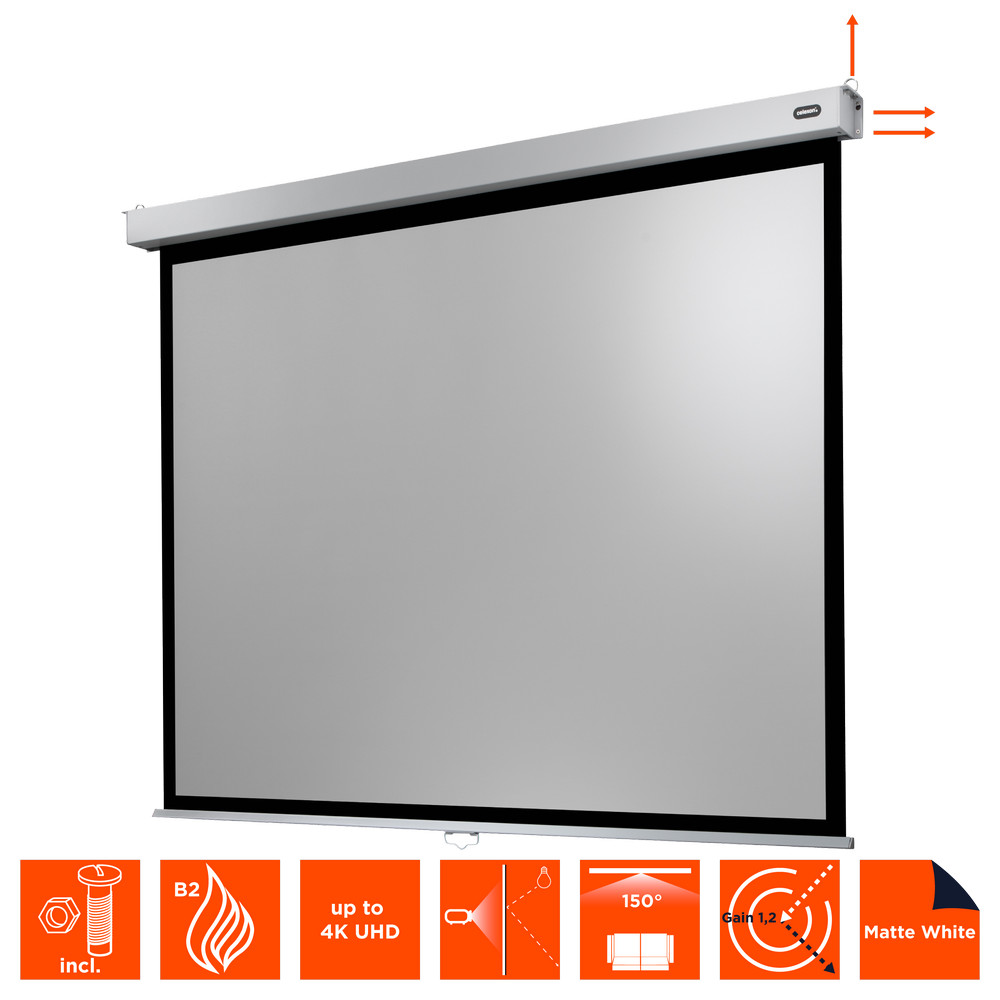

- Suitable for wall and ceiling mounting
- Black backing
- Ideal for home cinema and presentational purposes with 1.2 Gain factor
- High-quality gear-driven soft-return mechanism
- Simple, white closed box design
The 3-ply projection fabric has a gain factor of 1.2 and a stabilizing layer of polyester in the middle. It has a black backing and a matt white viewing area. Suitable for most projection environments.
The built-in soft-return mechanism allows the user to pull the screen down once about 5 cm and simply let it go to retract it back into the housing. The soft-return mechanism is gear-based rather than conventional oil-based soft-return mechanisms, ensuring a much longer life and constant retraction force.
The screen has a black border to achieve optimal image containment and increased contrast of the projected image.

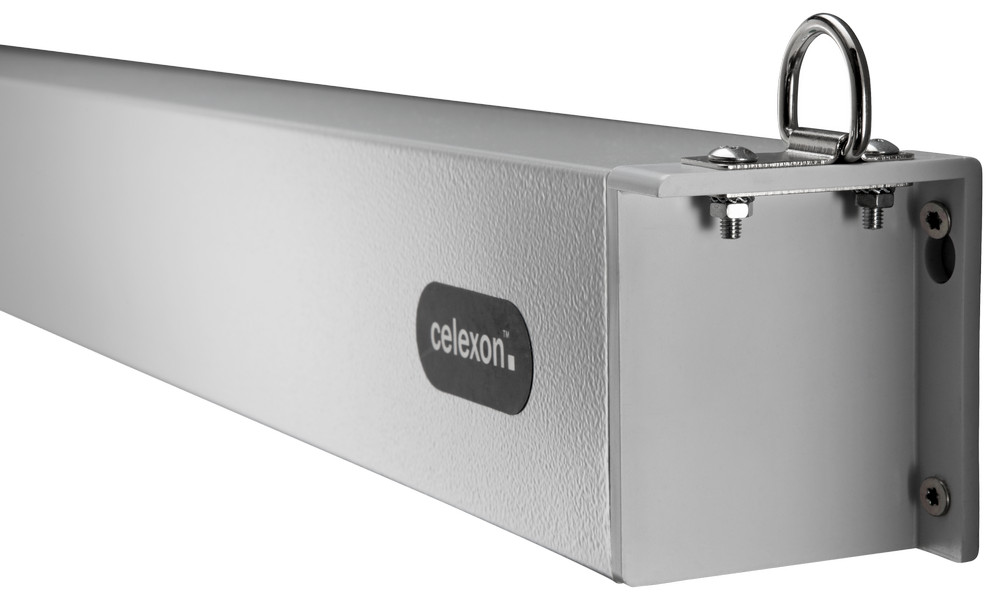

The screen comes with mounting caps for wall or ceiling included on the housing along with an installation and operating manual. Wall spacers are available as optional extras.
Technical data
Name | celexon Projector Screen Manual Professional Plus 300 x 225 cm - Slow retraction |
---|---|
Article number | 1090807 |
GTIN/EAN | 4260094733956 |
Manufacturer SKU | 1090807 |
Model name | 1090807 |
Projection Distance | Long Throw , Short Throw |
Brand | celexon |
Product Type | Projection screen |
Product Series | celexon Manual Professional Plus |
Screen type | Manual |
Technology | Front projection |
Screen fabric | matt white polyester |
Aspect Ratio | 4:3 Aspect Ratio Format: The projected image is output in a format (aspect ratio) specified by the projector. The format is also determined by the resolution of the projector (see also the entry "Resolution"). The screen format is usually selected on the basis of the format of the beamer image. The most common formats are 4:3, 16:9 and 16:10. |
Viewable Area - Width | 300 cm Viewable Area - Width Visible surface: The usable surface of a screen is the coated part of the cloth on which the image is projected. The frame and box width are always a few centimetres wider than the usable surface of the screen. |
Viewable Area - Height | 225 cm Viewable Area - Height Visible surface: The usable surface of a screen is the coated part of the cloth on which the image is projected. The frame and box width are always a few centimetres wider than the usable surface of the screen. Leader: The leader or offset is the part above the screen. This allows the upper vertical area of the fabric of a roller screen to be limited and freely determined within certain limits. The leading edge prevents the visible area of the screen from being set too high when a screen is positioned in rooms with high ceilings. |
Black border - Top | 8 cm Black border - Top Masking: The black border of a canvas is called masking. It provides an increase in contrast to the actually visible image and is also responsible for delimiting the edge of the image. The masking can be fixed or variable, for example to switch to a different format. |
Black borders - Left/Right | 6 cm Black borders - Left/Right Masking: The black border of a canvas is called masking. It provides an increase in contrast to the actually visible image and is also responsible for delimiting the edge of the image. The masking can be fixed or variable, for example to switch to a different format. |
Black border - bottom | 6 cm Black border - bottom Masking: The black border of a canvas is called masking. It provides an increase in contrast to the actually visible image and is also responsible for delimiting the edge of the image. The masking can be fixed or variable, for example to switch to a different format. |
Gain factor | 1.2 Gain factor Gain factor: The gain factor (or also called gain) is used to assess the reflection behaviour of screens and describes the light gain achieved in contrast to the brightness of the projector. A gain factor of 1.2 indicates that a screen reflects 1.2 times more in a given direction than a defined white standard surface. The gain factor is always given for the straight viewing angle of 0 degrees. Hot spot: A hot spot is a brightening in the centre of the image on a screen. These disturbing artefacts are created by the direct visibility of the projector lamp and only occur on screens with a very high gain factor (1.8 to 2.0). |
Mount type | Ceiling , Wall |
Features | Black backing |
Certificates | B1 flame retradent |
Product width | 323 cm |
Product height | 10 cm |
Product depth | 11 cm |
Weight | 18 kg |
Colour | White |
Condition | New |
Warranty | 24 Month |
Warranty type | Bringin service Service and support information |
