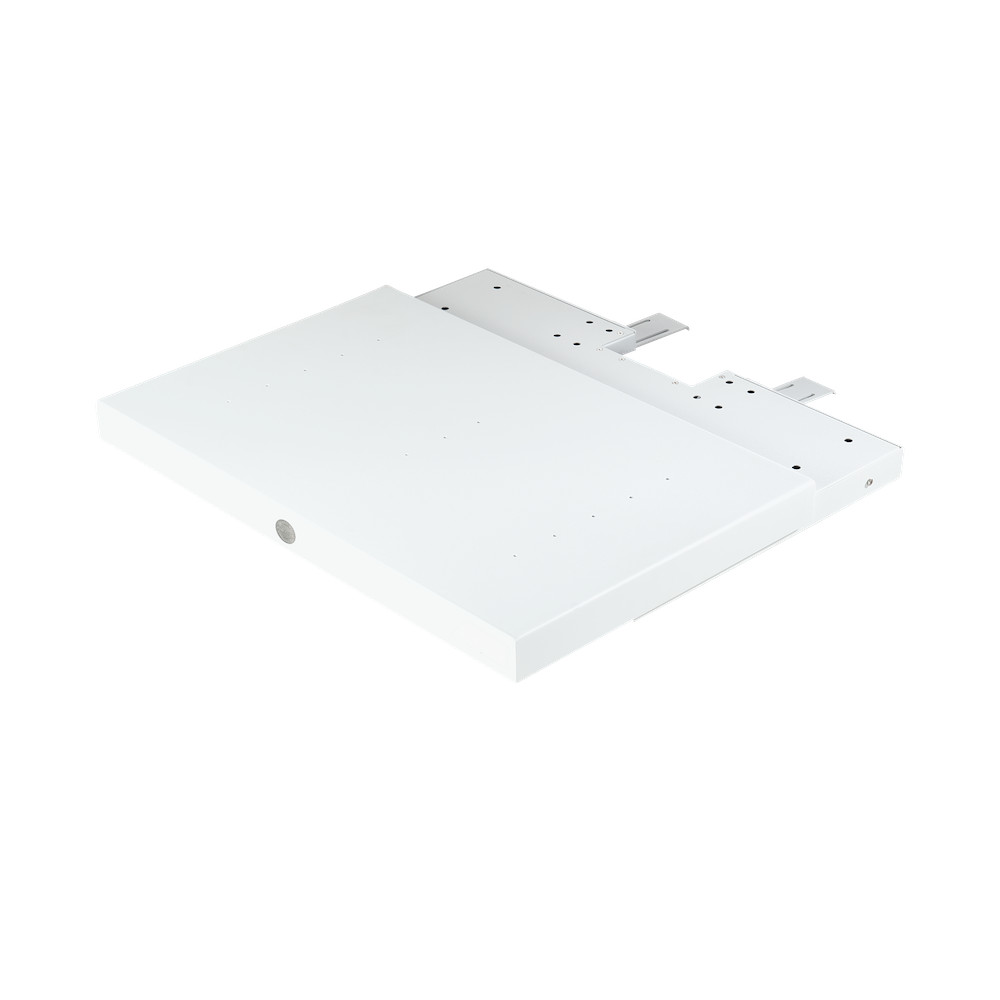

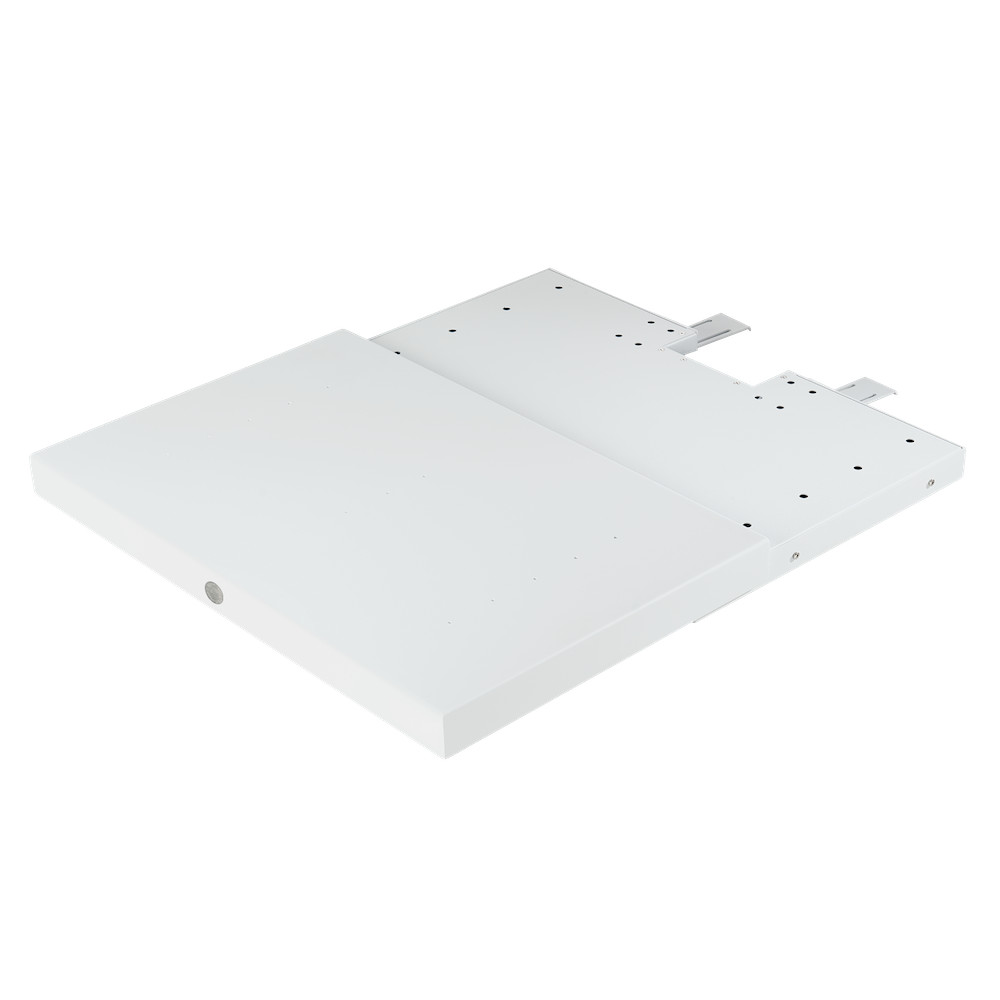

celexon electric laser TV shelf, white

In order to optimally set up your laser TV on a piece of furniture, you quickly run into the problem of how to realise the right distance for your projector without having to rebuild the furniture or without having to use a large depth of furniture. In the worst case, you'll have to think about a new piece of furniture.

This problem is a thing of the past with celexon's fully electronic laser TV shelf!

You have the choice - available in black or white

What points are important to realise an optimal and fully automated laser TV experience?

1) Existing furniture + mounting the screen and position of the projector

With a floor scissor screen from the HomeCinema Plus series from celexon, mounting the screen on your furniture or the wall behind it is no problem thanks to the intelligent mounting brackets with finely adjustable tilt.

The right distance for your projector can be optimally realised with our robust laser TV extension. This can safely support loads of up to 20 kg and can be easily screwed to the back of your furniture using the included mounting brackets or alternatively fixed to your furniture surface from above to prevent the projector from tilting with the platform. In the case of top mounting, the mounting brackets do not need to be installed.

The end positions (front and, if required, rear) can be easily programmed and saved using the enclosed remote control and the position is always returned to with millimetre precision.

2) Perfect, permanent picture alignment

A very important point, in addition to the programmed and reliably repeated end position, is the stability of the pull-out and its attachment to your furniture.

The internal mechanics and electronics of the laser TV runner play a very important role in ensuring that your picture, once aligned, always appears correctly on your screen.

The construction can suddenly tilt downwards after a few runs, or the end position cannot be approached with 100% accuracy because, for example, simple drawer runners or drawer runners cannot be moved to the end position.For example, simple drawer runners or built-in, rarely backlash-free drive screws allow play to the left and right or front and back.

For this reason, the celexon Laser TV drawer is equipped with high-quality and extremely robust linear guides in industrial quality. This ensures a durable and maximum exact end position, even after many years of regular use. Any "drifting" of the end position to the left or right is absolutely impossible.

Maximum precise and permanent positioning of your laser TV

For the permanently perfect, front end position, we have decided to use a linear rack in the drive. This is moved directly by a sturdy full metal gear wheel, which is manufactured to fit the rack perfectly. The linear guides as well as the rack and gearwheel are manufactured and assembled in industrial quality absolutely backlash-free.
This means that the entire drive is absolutely backlash-free in its end positions on both the Y- and X-axis - permanently.
Even many thousands of movements, as to be expected with a TV replacement with a Laser TV, result in no play whatsoever in the perfect image alignment of your projector on celexon's Laser TV focuser.

All drive components in industrial quality

3) Space-saving and practical connectivity

There is usually little space on the furniture and all components must be integrated in the most space-saving way possible.

Our laser TV drawer is 62 cm x 39.5 cm and 5.7 cm high, so it fits on many pieces of furniture and can accommodate almost all UST projectors on their feet on the underside. This means it remains inconspicuous under your projector and can be easily installed or retrofitted on almost any piece of furniture.

The highlight: all connections (power and trigger) fit within these dimensions! This means that rear connections do not take up any additional space and make space-saving integration into your furniture possible.
No external power supply unit is required to supply our laser TV pull-out with power, a classic power cable is used and can be easily replaced by you with one that matches the length of your furniture if required.
This makes it easy to lay the cables, leaving more space and less temperature behind your furniture.

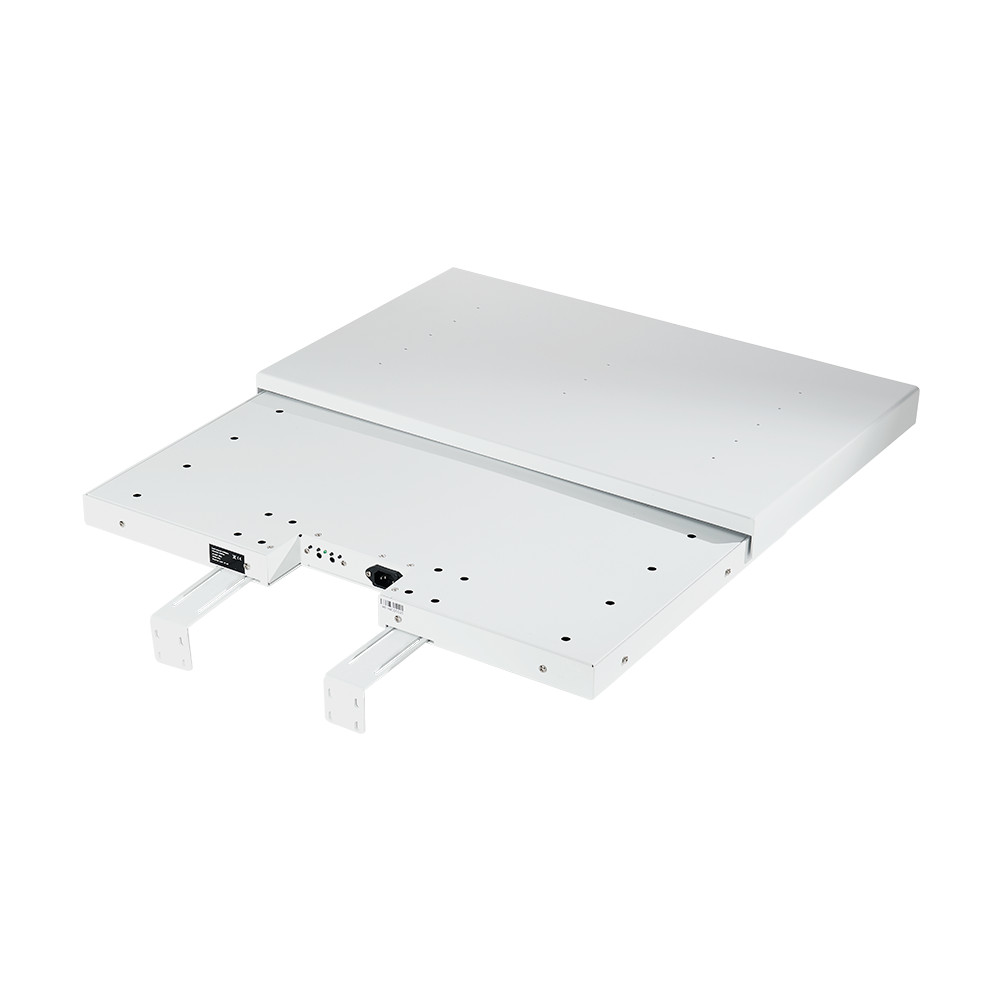

Recessed connections on the back save important space

4) Simple automation for the absolute laser TV experience

celexon's laser TV pull-out is equipped with a synchronous trigger module.
So no 2nd trigger output or USB port on your projector is required to automate both a screen and a focuser.
The platform connects to a USB port on your projector via the included trigger cable and also provides a trigger output for your screen.
smart ideas for the bigger picture.

5) Lifetime & background noise

Nobody wants to have to buy a 2nd laser TV extractor at some point. For this reason, all relevant components of our pull-out, from the housing to the drive parts, guides and gears, are full metal.
A high-torque and extremely quiet AC motor moves the pull-out forwards and backwards safely and permanently, not a simple DC motor with an external power supply unit!

The pull-out works whisper-quietly and runs extremely smoothly for undisturbed TV enjoyment.

The pull-out is available in black or white and can therefore be combined with a wide range of furniture and colours.

The cubist shape also allows the drawer to be concealed or built into your furniture, creating a design solution that is as unobtrusive as possible for a breathtaking laser TV experience.

BRIEF INFORMATION

• Stable construction suitable for all UST projectors
• Extremely smooth running and accuracy
• Whisper-quiet drive and mechanics
• Linear guides and linear rack and pinion drive for permanently exact end position
• Digital motorisation and smart end positions programmable via remote control
• Synchronous trigger for screen and drawer occupies only one USB port of your projector - full automation of your laser TV
• Attachment possible at the rear via enclosed brackets or from above on the furniture>
• Incl. Radio remote control + control on the pull-out itself
• Available in black or white
• Dimensions: 620 x 395 x 57 mm

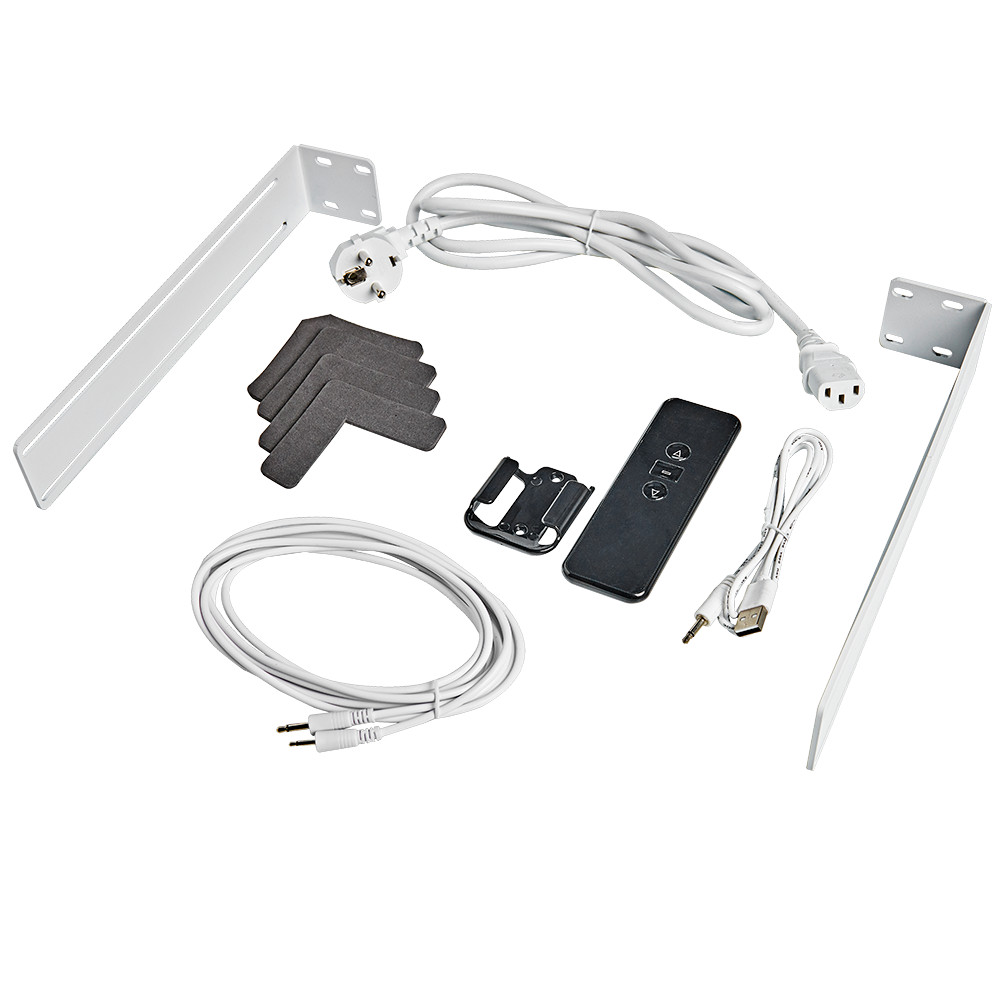

SCOPE OF DELIVERY

• Laser TV shelf
• Remote control
• 2 mounting brackets + screws for attaching to the pull-out unit
• Trigger cable (to USB plug)
• Cold appliance cable, 2 m
• Screws and wall plugs for optional wall mounting
• Padded with foam on the underside to prevent scratches on furniture, plus self-adhesive foam to secure your projector from slipping or to protect furniture
